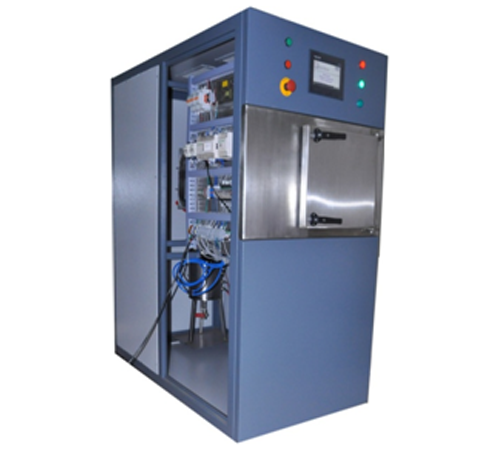

Dependable PLC controlled electric device provides accuracy
Touch Screen HMI
Built-in Aeration Cycle: Aeration is carried out at the end of the cycle inside the chamber itself
Operates on 100% ETO cartridges, supplied by us
Safety
100% ETO cartridge is punctured only when proper negative pressure and humidity conditions are achieved in the chamber
On-line printer for continuous monitoring by operator
Door can not be opened during process and until safe condition is achieved.
| Chamber | Sr. No. | Model no. | Length | Width | Depth | Heating | Capacity |
|---|---|---|---|---|---|---|
| 1 | PBT/ES/SS-02 | 300 | 300 | 600 | 2 KW | 55 Lit |
| 2 | PBT/ES/SS-04 | 300 | 300 | 1200 | 3 KW | 110 Lit |
| 3 | PBT/ES/SS-05 | 345 | 450 | 900 | 3 KW | 140 Lit |
| 4 | PBT/ES/SS-08 | 450 | 450 | 1050 | 4 KW | 226 Lit |
| 5 | PBT/ES/SS-12 | 600 | 600 | 900 | 4 KW | 340 Lit |
| 6 | PBT/ES/SS-16 | 600 | 600 | 1200 | 6 KW | 450 Lit |
